3D Mini Tray 発振器, MS-3D-TS
MS-3D-TS is an innovative, efficient and compact instrument.
製品説明
The 3D Mini Tray Shaker is an innovative, efficient and compact instrument.
*Could be compatibled with MO-MINI

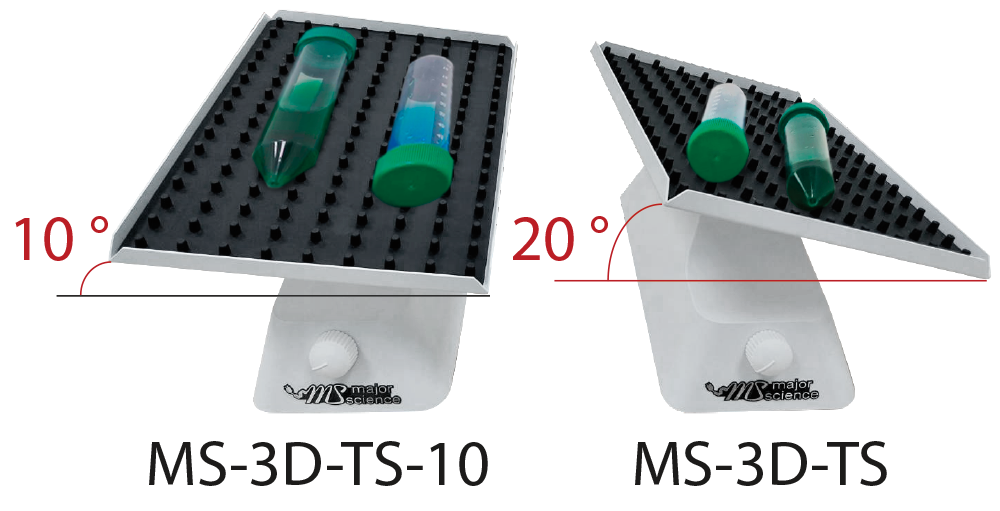

*Two rotating angle models are available for different apllication.
3D Mini Tray Shaker * Marketing video
- Could be compatibled with MO-MINI
- Three-Dimensional Movement
- Two rotating angle models are available for different apllication
* All images are for reference only, actual products might differ from the pictures above.
* Technical specifications subject to change without notice.
| Name | 3D Mini Tray Shaker | |
|---|---|---|
| Cat. No. | MS-3D-TS | MS-3D-TS-10 |
| Angle | 20 ° | 10 ° |
| Movement | Three-Dimensional Movement | |
| Speed range | 0~30rpm | |
| Speed display | scale (min/max) | |
| Platform size(WxL) | Approx. 9.21"x6.61"(168x234mm) | |
| Overall size(WxLxH) | Approx. 6.93"x8.66"x6.5"(176×220×165mm) | |
| Max Loading | 2 kg | |
| Weight | 1.2 kg | |
| Temperature Range | -10°C~60°C | |
| Power | 20W | |
| Input voltage | AC100~240V 50/60Hz | |
| Certification | CE | |
| Cat. No. | Description |
|---|---|
| MS-3D-TS-CN | 3D Tray Shaker with Adjustable Speed, CN power cord |
| MS-3D-TS-US | 3D Tray Shaker with Adjustable Speed, US power cord |
| MS-3D-TS-UK | 3D Tray Shaker with Adjustable Speed, UK power cord |
| MS-3D-TS-AU | 3D Tray Shaker with Adjustable Speed, AU power cord |
| MS-3D-TS-EU | 3D Tray Shaker with Adjustable Speed, EU power cord |
| MS-3D-TS-IN | 3D Tray Shaker with Adjustable Speed, IN power cord |
| MS-3D-TS | 3D Tray Shaker with Adjustable Speed |
| Cat. No. | Description |
|---|---|
| MS-3D-TS-001 | optional tray with spring and pad for 3D Tray Shaker, MS-3D-TS. |
| MS-3D-TS-002 | 3D Tray Shaker Standard pallet anti-slip mat, rubber, black |
| MS-3D-TS-003 | 3D Tray Shaker Optional tray anti-slip mat, rubber, black |
| MS-3D-TS-004 | 3D Tray Shaker Optional tray anti-slip mat with spring pull cord, black, 2mm diameter, 350mm circumference |
| MS-3D-TS-005 | 3D Tray Shaker Optional tray anti-slip mat with spring pull cord, black, 2mm diameter, 400mm circumference |
