ミニ水平電気泳動システム , MJ-105A
製品説明
The MJ-105A horizontal electrophoresis system offers many advantages for nucleic acid separation.
Agarose gels are convenient to cast and samples are easy to load with this recognizable mini horizontal cell. Its molded design prevents cracks and leakages and the sturdy PC provides a 130°C temperature capacity. The safety interlock cover is designed to prevent electrical hazards during electrophoresis. It is ideal for several applications, including Northern and Southern blotting, Cosmid library restriction analysis, STS screening, microsatellite analysis, PCR fragment analysis, RFLP analysis, DNA finger-printing and high throughput analysis.
Mini Horizontal Gel Electrophoresis System, MJ-105A
Features
- Less agarose consumption
- Less running buffer consumption
- Multichannel pipette-compatible
- Single molded tank
- Safety & Ventilation lid
- High-temperature capability, 130°
- Easy sample loading
- Great indications for gel making and running
- No tapes, clamps or springs needed for gel casting
- No direct heat impact from power supply unit
- Transparent tank and lid
- Real-time observation with MBE-300
- Contains 2 sets of gel maker stand
- Cast 6 pcs of agarose gel in one time
MJ-105A is offered as a complete system for the user to cast, and run electrophoresis. including:
- 1 x Transparent tank and transparent lid
- 2 x MJ-G01 (Gel Maker Stand)
- 2 x MJ-T02 (107x60mm Tray)
- 4 x MJ-T01 (52x60mm Tray)
- 1 x MJ-C01 (Double side comb: 8 teeth x 2 & 17 teeth; 12 teeth x 2 & 25 teeth)
- 1 x MT-C03 (Multiple pipette compatible 23 teeth, Prep 1 & Marker 2, Prep 2 & Marker 2; 6 teeth x 2 for mini gel & 12 teeth for midi gel)
- 1 x Black & red electrophoresis cable
| Cat. No | MJ-105A |
|---|---|
| Appearance | Transparent tank & transparent lid |
| Material | PC (Polycarbonate) |
| Lid Material | PC (Polycarbonate) |
| Temperature Capacity | 130° |
| Transparent Lid | Safety ventilation design |
| Gel Dimension (WxL) | 4.2"x2.4" (107x60mm) |
| 2.1"x2.4" (52x60mm) | |
| Tray | Black well-visualization strip |
| Migration distance index line | |
| Agarose level, 0.2" (5mm) | |
| Rapid Casting Gel | Use gel maker stand |
| Maximum Gel Thickness | 0.39" (10mm) |
| Maximum Sample | 25 samples |
| Buffer Volume | 0.05gal (200ml) |
| Operating Temperature | 4 - 40° |
| Dimension (WxLxH) | 5.8"x5.7"x2.3" (148.3x145.8x59.1mm) |
| Weight | Approx. 1.1lb (0.5kg) |
| Cat. No. | Product Description |
|---|---|
| MJ-105A | Transparent Mini Horizontal Electrophoresis System |

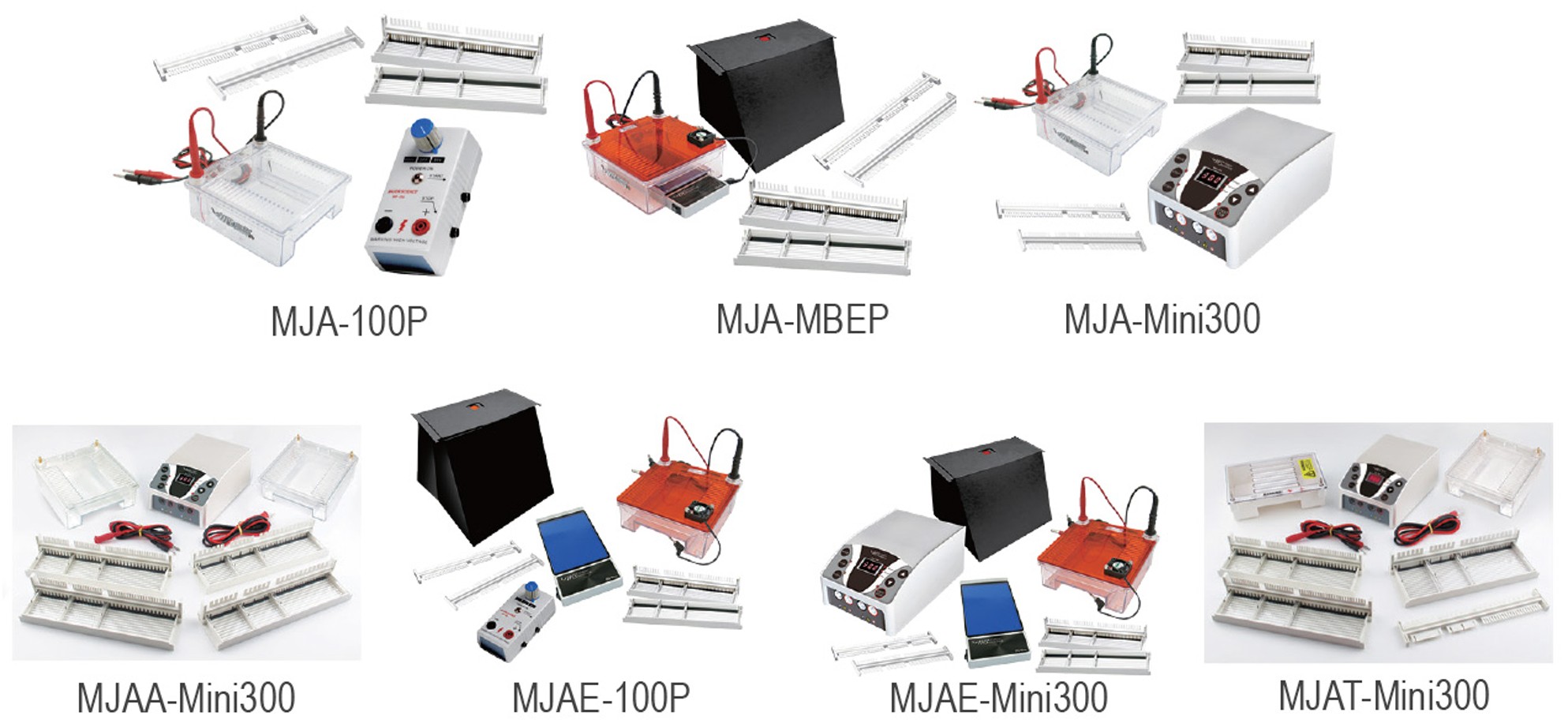

| Single Electrophoresis Packages | |
| MJA-100P | Package of MJ-105A and MP-100 |
| MJAE-100P | Package of MJ-105A, MP-100, and MBE-300; amber filter lid with fan,synthetic paper hood are included |
| MJA-MBEP | Package of MJ-105A and MBE-300; amber filter lid with fan, synthetic paper hood are included |
| Cat. No. | Description |
|---|---|
| MJ-B01-A | Transparent tank and lid, without accessories |
| MJ-LID-AM580 | 580nm amber filter lid with fan, suitable for MJ-105A |
| MBE-LID-AM580 | An inclined 580nm amber filter, suitable for MBE-200 and MBE-300 |
| MJ-G01 | Gel maker stand |
| MJ-T01 | 2.05"x2.36" (52x60mm) Tray |
| MJ-T02 | 4.21"x2.36" (107x60mm) Tray |
| Analytical comb | |
| MJ-C01 | 8 teeth x 2 for mini gel & 17 teeth for midi gel (thickness: 1.0mm), 12 teeth x 2 for mini gel & 25 teeth for midi gel (thickness: 1.5mm) |
| MT-C03 | Analytical comb 1.0mm-thick (multiple pipetee compatible 23 teeth, Prep 1 & Maker 2, Prep 2 & Maker 2 on one side; 6 teeth x 2 for mini gel & 12 teeth for midi gel on the other side) |
| MBE-150-CABLE | Red and black cable for SafeBlue electrophoresis tank |
| MJ-CASTER-C | 2 x MJ-G01; 4 x MJ-T01; 2 x MJ-T02; 1 x MJ-C01 and 1 x MT-C03 |
| MBE-HOOD | Synthetic paper hood |
| Cat. No. | Tooth Thickness | Tooth Width | Sample Volume for a 5mm thick gel (ul) | |
|---|---|---|---|---|
| A | MJ-C01 | 1.0mm | 4.0mm | 20 |
| B | MJ-C01 | 1.5mm | 2.8mm | 21 |
| C | MT-C03 | 1.0mm | 36.0mm | 180 |
| D | MT-C03 | 1.0mm | 17.0mm | 85 |
| E | MT-C03 | 1.0mm | 3.0mm | 15 |
| F | MT-C03 | 1.0mm | 6.0mm | 30 |
| G | MT-C03 | 1.0mm | 6.5mm | 32.5 |
