10L/20L水浴攪拌タンク, SWB-10LT/SWB-20LT series
SWB-10LT/SWB-20LT series水浴攪拌タンク
製品説明

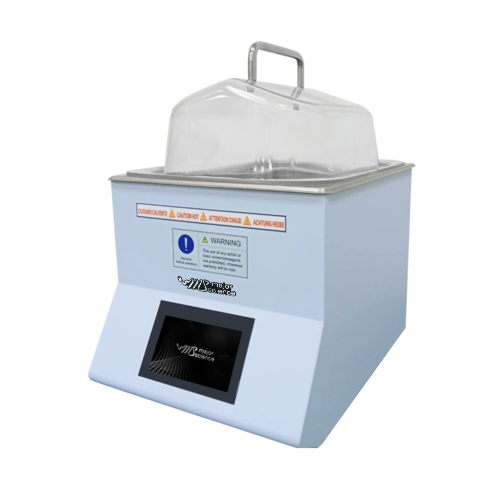

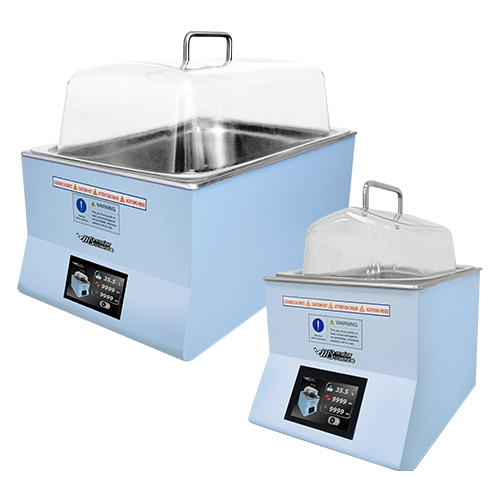

10L Stirring Water Bath, SWB-10LT series
MS07_Stirring Water Bath SWB-10L / SWB-20L * Marketing video
MS07_Stirring Water Bath SWB-10L / SWB-20L
- Microprocessor control with digital performance for precise, accurate control
- Built-in magnetic stirring mechanism for water agitation, water temperature uniformity and medium solution mixing
- Stirring speed control
- 4.3”colorful touch screen shows temperature and timer simultaneously
- User temperature calibration
- Safety device: warning indication on screen to avoid overheating and automatic shut down
- Multiple stirring mechanism capability
- Data Logging software available
 |
 |
 |
| Concave lid design allows condensation flow back to the tank. | Side opening of the lid to allow minimum evaporation while maintaining water bath temperature. | Water Circulation Function |
 Magnetic Agitator |
||
 Stir bar |
* All images are for reference only, actual products might differ from the pictures above.
* Technical specifications subject to change without notice.
| Cat. No. | SWB-10LT-1 | SWB-10LT-2 | SWB-20LT-1 | SWB-20LT-3 |
|---|---|---|---|---|
| Display | 4.3" colorful touch screen | |||
| Voltage | 110V/220V, 50/60Hz | |||
| Power | 600W | 800W | ||
| Number Of Stirring Mechanisms | 1 | 2 | 1 | 3 |
| Controller | Digital microprocess controller | |||
| Bath Tank Material | 304 stainless steel | |||
| Stirring speed | 400-1500rpm | |||
| Temperature control range | 5°C above ambient to 99°C | |||
| Temperature increment | 0.1°C | |||
| Temperature uniformity | ± 0.2°C at 37°C | |||
| Temperature Calibration | yes | |||
| Timer | 9999(min) / Continuous | |||
| Bath Inner Dimension (WxLxH) | 240x300x150mm | 300x500x150mm | ||
| Dimension (WxLxH) (without lid) | 255x355x240mm | 330x540x240mm | ||
| Weight | Approx. 9kg | Approx. 14kg | ||
| Cat. No. | Product Description |
|---|---|
| SWB-10LT-1-110 | 10L Stirring Water Bath, 110V, 50/60Hz, Number Of Stirring Mechanisms 1 |
| SWB-10LT-2-110 | 10L Stirring Water Bath, 110V, 50/60Hz, Number Of Stirring Mechanisms 2 |
| SWB-10LT-1-220 | 10L Stirring Water Bath, 220V, 50/60Hz, Number Of Stirring Mechanisms 1 |
| SWB-10LT-2-220 | 10L Stirring Water Bath, 220V, 50/60Hz, Number Of Stirring Mechanisms 2 |
| SWB-20LT-1-110 | 20L Stirring Water Bath, 110V, 50/60Hz, Number Of Stirring Mechanisms 1 |
| SWB-20LT-3-110 | 20L Stirring Water Bath, 110V, 50/60Hz, Number Of Stirring Mechanisms 3 |
| SWB-20LT-1-220 | 20L Stirring Water Bath, 220V, 50/60Hz, Number Of Stirring Mechanisms 1 |
| SWB-20LT-3-220 | 20L Stirring Water Bath, 220V, 50/60Hz, Number Of Stirring Mechanisms 3 |
| Cat. No | Product Description |
|---|---|
| SWB-LID10 | Transparent lid for 10L Stirring Water Bath |
| SWB-RS232 | RS 232 cable for data logging |
| SWB-DLSW | Data Logging software package |
| SWB-DLSW-R | Data Logging software package, include a RS 232 cable |
